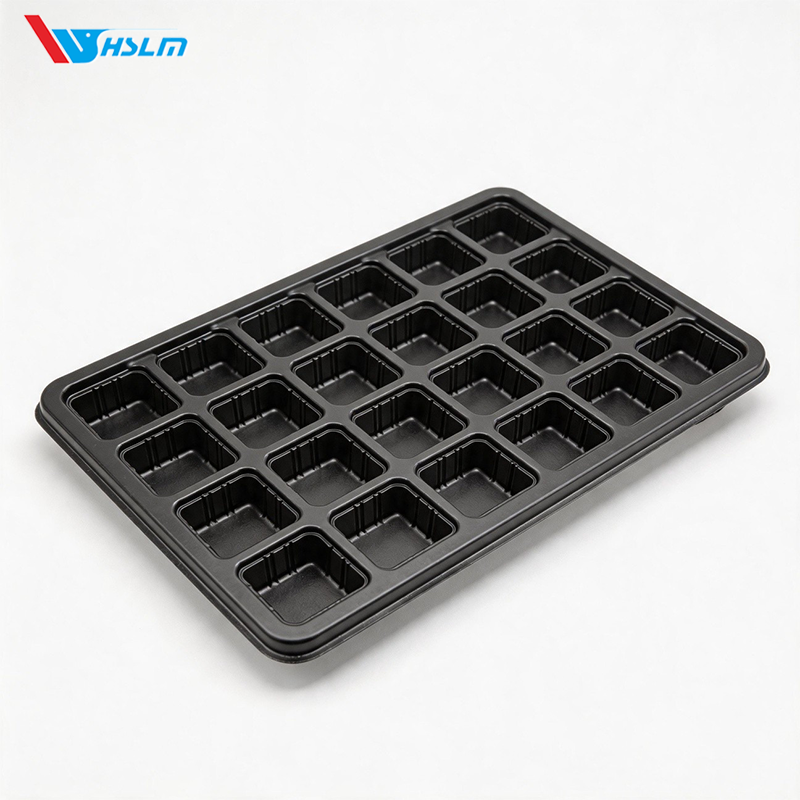

2mm/3mm thick ESD plastic tray. High rigidity, anti-static, deformation-resistant and customizable for electronic storage.
This ESD plastic tray is available in 2mm and 3mm thickness specifications. The thicker structure greatly improves rigidity and impact resistance, avoiding deformation during repeated stacking and circulation. It provides reliable anti-static protection for precision electronic parts, with separated cavities to prevent component scratches. Custom cavity layouts, outer dimensions and surface treatments are supported to satisfy different load-bearing and packaging demands.
- 1 Permanent & Stable ESD Protection
- 2 Precision CNC Tool-Molded Pockets
- 3 100K Cleanroom Certified Hygiene
- 4 High-Density Space-Saving Nesting
2mm 3mm thickness ESD plastic tray is part of our Thin-Gauge Precision Trays line. The series-level introduction, specifications, applications and FAQ below apply to this model and its related sizes. Custom specifications, materials and branding are available for bulk orders.
Product Overview & Market Intent
Microelectronics, semiconductor and high-end electronics assembly all place the same demand on packaging: the component must not move, and the surface must not carry a charge. 2mm 3mm thickness ESD meets both, and holds its geometry across automated handling, plant transfer and long-haul freight.
The trays are produced in a 100,000-class dust-free cleanroom by a team with over twenty years of OEM/ODM experience. Sheet selection spans anti-static, dissipative and conductive formulations in PS, PET and PVC, and every cavity is cut to a micro-tolerance band that keeps it compatible with automated handling.
Key Product Characteristics
Permanent & Stable ESD Protection (Zero Electrostatic Risk): The anti-static properties are deeply embedded into the plastic sheet matrix, guaranteeing long-term stable resistivity (10^6 – 10^9 Ohm for dissipative or 10^3 – 10^5 Ohm for conductive) that won’t fade due to friction, washing, or environmental humidity changes.
Precision CNC Tool-Molded Pockets: Utilizing high-precision CNC tooling, each pocket/cavity is engineered with precise draft angles and tolerances, guaranteeing components stay snugly in place without friction damage while allowing rapid mechanical grabbing.
100K Cleanroom Certified Hygiene: Free from airborne dust, oils, or lint fibers, guaranteeing that sensitive electronic sensors, lenses, and acoustic parts are protected from microscopic surface contamination.
High-Density Space-Saving Nesting: Empty, these thin-walled trays nest without interruption together with minimum clearance, appreciably lowering warehouse storage footprint and reducing international ocean freight costs per unit.
Hardware & Fine Instrument Storage: Serves as precision custom-slotted storage inserts for multi-part toolkits, micro-screws, and calibration tools in assembly bays. Commercial Applications & Scenarios Automated PCBA & Semiconductor Shipping: Serves as the standardized carrying tray matrix for raw circuit boards, microchips, and motherboard modules passing through high-speed SMT assembly lines. Consumer Electronics & Earphone Inner Liners: Tailored sleek black or custom-colored thin-gauge (2mm) blister inserts used inside retail packaging for high-end earphones, smartwatches, and smartphone accessories to boost shelf presence. Fragile Medical Electronics Components: Provides secure, clean-room approved compartmentalized tray packaging for precision laboratory sensors and dental equipment pieces.
Technical Specifications
Technical Detail & Industrial Standard: Product Category
ESD Blister Trays / thin-gauge (2mm) Electronic Packaging / Vacuum Formed Inserts: Material Formulation
High-Grade PS (Polystyrene), PET, PVC (Virgin Clear or Solid Matte Finishes): Material Thickness Range
Thin-Gauge Options: 0.5mm, 0.8mm, 1.0mm, to 1.5mm
Conductive: 10^3 – 10^5 Ohm | Dissipative: 10^6 – 10^9 \Ohm$ | Anti-Static: 10^9 – 10^{11} \Ome$
Production Environment: 100,000-Class Dust-Free Cleanroom Production Lines
Core Compliance: RoHS Compliant, REACH Certified, Lead-Free, SGS Laboratory Tested
Customization Capability: Full Custom CAD/3D Sample Engineering, Engraved Part Numbers & Logos
Global Industrial Case Study
The Client: An OEM producing communications modules for export to Europe.
The Challenge: Particle contamination on fine-pitch assemblies was driving a rework loop, and the customer needed a cleanroom-compatible packaging route that would satisfy an incoming audit.
Our Solution: We moved production to the 100,000-class area and supplied trays with a smooth, low-shedding finish, backed by particle counts and material certificates for the customer’s audit file.
The Outcome: The audit was passed without a finding, the rework loop closed, and the packaging specification was extended across the customer’s other assembly lines.
B2B Frequently Asked Questions
Q1: Do the anti-static properties of 2mm 3mm thickness esd fade with age or repeated washing?
A: No. The anti-static compound is blended into the sheet matrix rather than coated onto the surface, so the resistivity is a property of the material itself. Normal handling, stacking and cleaning do not strip it back.
Q2: Which surface resistivity band does 2mm 3mm thickness esd sit in?
A: For 2mm 3mm thickness ESD the specification is set at the dissipative band, which is the usual choice for bare boards and populated assemblies that need protection without the discharge speed of a conductive tray.
Q3: Can 2mm 3mm thickness esd survive automated handling and repeated stacking cycles?
A: The wall is profiled with structural ribs and radiused corners, so the tray holds its geometry through repeated magazine loading. Cycle life depends on fill weight and nesting depth, and we recommend a pilot loop to establish the real figure for your duty cycle.
Q4: Can 2mm 3mm thickness esd be washed and returned to service?
A: Yes. The static-control compound is part of the sheet, so normal washing removes contamination without stripping the resistivity. We recommend a mild neutral cleaner and a full dry before the tray goes back into the line.
